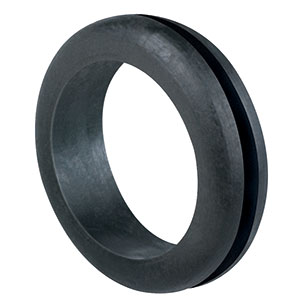

材料 | 黑色PVC，黑色TPR |
特点 | 保护穿过面板的电线和电缆 |
黑色TPR： 抗油脂 工作可承受温度-40℃~+135℃，适应严峻环境 稳定材料，使用寿命长 可替代PVC的环保材料 |
注意 | 更多尺寸可供选择，详情请联系我司营业人员 |

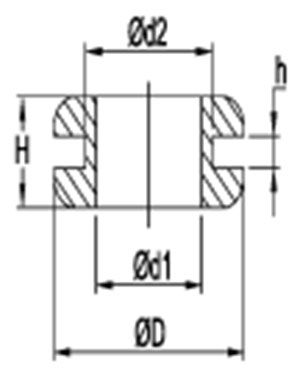

| 零件号 | d2安装孔径 | h板材厚度 | 尺寸 | ||||
| PVC | TPR | d1 | D | H | |||
| EV214-22010001 | EV214-22010066 | 4.8 | 0.8 | 2.8 | 8.0 | 4.8 | |
| EV214-22010002 | EV214-22010067 | 4.8 | 1.6 | 3.2 | 8.0 | 6.4 | |
| EV214-22010003 | - | 6.0 | 1.2 | 3.2 | 8.8 | 4.0 | |
| HOT | EV214-22010336 | - | 6.0 | 0.6 | 3.0 | 9.0 | 4.6 |
| EV214-22010004* | EV214-22010068 | 6.4 | 0.8 | 4.0 | 9.5 | 4.0 | |
| HOT | EV214-22010005 | EV214-22010069 | 6.4 | 1.6 | 4.0 | 9.5 | 6.3 |
| EV214-22010006 | EV214-22010070 | 6.4 | 1.6 | 4.8 | 9.5 | 7.0 | |
| EV214-22010007 | EV214-22010070 | 6.4 | 1.6 | 4.8 | 9.5 | 7.0 | |
| EV214-22010008 | EV214-22010071 | 6.4 | 3.0 | 4.0 | 9.5 | 8.0 | |
| EV214-22010009 | - | 7.0 | 1.5 | 4.8 | 11.1 | 6.4 | |
| EV214-22010010 | - | 7.5 | 1.6 | 4.8 | 12.5 | 6.8 | |
| EV214-22010011 | - | 7.9 | 1.2 | 5.6 | 11.1 | 6.4 | |
| EV214-22010012 | - | 7.9 | 1.6 | 3.0 | 11.0 | 8.0 | |
| - | EV214-22010072 | 8.0 | 0.8 | 4.8 | 11.0 | 4.8 | |
| EV214-22010013 | - | 8.0 | 0.8 | 5.5 | 11.0 | 5.5 | |
| EV214-22010014* | EV214-22010073 | 8.0 | 1.6 | 5.5 | 11.0 | 5.5 | |
| EV214-22010015 | - | 8.0 | 3.0 | 4.8 | 11.0 | 4.8 | |
| HOT | EV214-22010341 | - | 8.0 | 3.0 | 5.0 | 11.0 | 8.0 |
| EV214-22010016 | EV214-22010074 | 9.5 | 1.2 | 7.0 | 13.8 | 4.0 | |
| - | EV214-22010075 | 9.5 | 1.6 | 4.8 | 12.5 | 6.8 | |
| EV214-22010017* | EV214-22010076 | 9.5 | 1.6 | 6.4 | 14.2 | 6.4 | |
| EV214-22010018 | - | 9.5 | 1.6 | 6.4 | 14.2 | 7.0 | |
| EV214-22010019 | - | 9.5 | 1.6 | 6.4 | 14.2 | 5.0 | |
| EV214-22010020 | EV214-22010077 | 9.5 | 1.6 | 8.0 | 14.2 | 4.8 | |
| EV214-22010021 | EV214-22010078 | 9.5 | 1.6 | 8.0 | 14.2 | 8.0 | |
| EV214-22010022 | - | 9.5 | 2.4 | 5.6 | 11.1 | 4.0 | |
| HOT | EV214-22010313 | EV214-22010079 | 9.5 | 2.4 | 6.4 | 14.2 | 7.0 |
| EV214-22010023 | - | 9.6 | 3.2 | 4.0 | 15.9 | 6.4 | |
| EV214-22010024 | EV214-22010080 | 10.2 | 1.2 | 7.0 | 13.8 | 4.5 | |
| EV214-22010025 | - | 10.3 | 1.6 | 7.2 | 14.3 | 4.0 | |
| EV214-22010026 | - | 10.3 | 1.6 | 7.9 | 15.9 | 7.9 | |
| EV214-22010027 | - | 11.0 | 1.6 | 8.0 | 14.2 | 4.8 | |
| EV214-22010028 | EV214-22010082 | 11.0 | 1.6 | 8.0 | 14.2 | 8.0 | |
| EV214-22010029 | EV214-22010083 | 11.0 | 1.6 | 8.0 | 16.0 | 6.4 | |
| EV214-22010030 | - | 11.9 | 1.6 | 6.4 | 15.9 | 7.9 | |
| EV214-22010031 | - | 11.9 | 2.0 | 9.6 | 17.5 | 6.8 | |
| HOT | EV214-22010317 | - | 12.0 | 2.0 | 10.0 | 18.0 | 7.0 |
| EV214-22010032 | EV214-22010084 | 12.5 | 1.6 | 6.4 | 16.0 | 8.0 | |
| EV214-22010033 | EV214-22010085 | 12.5 | 1.6 | 8.0 | 16.0 | 6.4 | |
| EV214-22010034 | EV214-22010086 | 12.5 | 1.6 | 9.5 | 17.0 | 7.0 | |
| EV214-22010035 | - | 12.5 | 1.6 | 9.5 | 19.0 | 6.4 | |
| EV214-22010036 | EV214-22010087 | 12.5 | 1.6 | 11.0 | 19.0 | 6.4 | |
| HOT | EV214-22010037 | EV214-22010088 | 12.5 | 3.0 | 8.0 | 16.0 | 8.0 |
| HOT | EV214-22010038 | EV214-22010089 | 12.5 | 3.0 | 9.5 | 17.0 | 8.8 |
| EV214-22010039 | - | 13.5 | 3.2 | 9.6 | 19.0 | 9.6 | |
| EV214-22010040 | - | 13.5 | 4.0 | 9.6 | 23.0 | 8.8 | |
| HOT | EV214-22010340 | 14.0 | 1.6 | 11.0 | 20.0 | 5.5 | |
| EV214-22010041 | - | 14.2 | 1.6 | 9.5 | 19.0 | 6.4 | |
| HOT | EV214-22010042 | EV214-22010090 | 14.2 | 1.6 | 11.0 | 19.0 | 6.4 |
| EV214-22010043 | - | 15.9 | 0.8 | 11.1 | 19.0 | 9.5 | |
| EV214-22010044** | - | 15.9 | 1.2 | 12.7 | 20.6 | 5.0 | |
| EV214-22010045 | EV214-22010091 | 16.0 | 1.2 | 12.5 | 20.5 | 7.0 | |
| EV214-22010046 | EV214-22010092 | 17.5 | 1.6 | 12.5 | 22.0 | 6.4 | |
| EV214-22010047 | - | 17.5 | 1.6 | 14.2 | 22.0 | 4.8 | |
| EV214-22010048 | - | 19.0 | 1.6 | 12.0 | 25.4 | 7.9 | |
| EV214-22010049 | EV214-22010093 | 19.0 | 1.6 | 12.5 | 25.5 | 6.4 | |
| EV214-22010050 | - | 19.0 | 1.6 | 16.0 | 22.0 | 5.5 | |
| EV214-22010051 | EV214-22010094 | 19.0 | 1.6 | 16.0 | 24.0 | 6.0 | |
| EV214-22010052 | - | 19.0 | 1.6 | 17.5 | 24.0 | 4.8 | |
| EV214-22010053 | - | 19.0 | 4.8 | 11.1 | 25.4 | 9.5 | |
| EV214-22010054 | - | 20.0 | 1.6 | 12.5 | 25.5 | 6.4 | |
| EV214-22010055 | EV214-22010095 | 20.0 | 1.6 | 16.0 | 24.0 | 6.5 | |
| HOT | EV214-22010347 | - | 20.0 | 2.0 | 16.0 | 28.0 | 8.0 |
| EV214-22010056 | EV214-22010096 | 20.5 | 1.2 | 16.0 | 27.0 | 8.0 | |
| EV214-22010057 | - | 25.2 | 1.2 | 18.5 | 31.4 | 7.5 | |
| EV214-22010058 | EV214-22010097 | 25.2 | 1.6 | 18.5 | 31.4 | 8.0 | |
| EV214-22010059 | EV214-22010098 | 25.2 | 1.6 | 22.0 | 30.0 | 8.0 | |
| HOT | EV214-22010331 | - | 26.0 | 2.0 | 20.0 | 32.0 | 9.0 |
| EV214-22010060** | - | 30.6 | 3.2 | 25.4 | 44.4 | 9.9 | |
| EV214-22010061 | EV214-22010099 | 31.0 | 1.6 | 24.9 | 38.0 | 7.8 | |
| EV214-22010062 | - | 32.0 | 0.8 | 25.5 | 44.5 | 6.4 | |
| HOT | EV214-22010333 | - | 32.0 | 1.6 | 25.5 | 38.0 | 7.5 |
| EV214-22010063 | EV214-22010100 | 37.0 | 1.6 | 31.2 | 45.5 | 9.5 | |
| EV214-22010064 | EV214-22010101 | 38.0 | 3.0 | 32.0 | 46.0 | 11.0 | |
| EV214-22010065 | EV214-22010102 | 50.0 | 1.6 | 45.0 | 60.0 | 10.0 | |
*硬度43绍尔A **弧形的内肩 |
