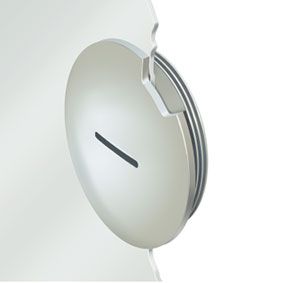

特点 | 电缆固定头不使用时, 可塞住入口 |
材料 | 灰色尼龙 6.6和黄铜 |
尼龙PG螺纹系列

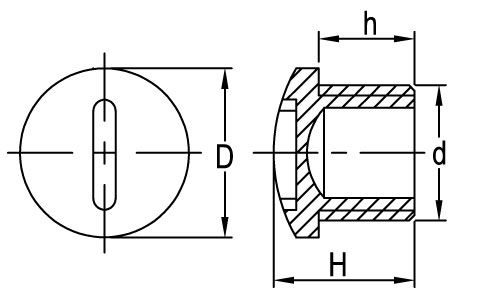

| 零件号 | 尺寸（mm） | 标准包装数量 | ||||
| 黑色 | 灰色 | d | D | H | h | |
| EV214-22100001 | EV214-22100011 | PG 7 | 15.0 | 12.5 | 8.5 | 50 |
| EV214-22100002 | EV214-22100012 | PG 9 | 19.0 | 13.0 | 8.5 | 50 |
| EV214-22100003 | EV214-22100013 | PG 11 | 22.0 | 13.0 | 9.0 | 50 |
| EV214-22100004 | EV214-22100014 | PG 13.5 | 25.0 | 13.0 | 9.0 | 50 |
| EV214-22100005 | EV214-22100015 | PG 16 | 27.0 | 15.0 | 10.5 | 50 |
| EV214-22100006 | EV214-22100016 | PG 21 | 33.0 | 13.5 | 8.5 | 50 |
| EV214-22100007 | EV214-22100017 | PG 29 | 44.0 | 16.0 | 11.5 | 25 |
| EV214-22100008 | EV214-22100018 | PG 36 | 55.0 | 18.0 | 13.5 | 25 |
| EV214-22100009 | EV214-22100019 | PG 42 | 62.0 | 18.5 | 13.5 | 25 |
| EV214-22100010 | EV214-22100020 | PG 48 | 68.0 | 19.5 | 14.5 | 25 |
尼龙公制螺纹系列
| 零件号 | 尺寸（mm） | 标准包装数量 | ||||
| 黑色 | 灰色 | d | D | H | h | |
| EV214-22100031 | EV214-22100039 | M12 × 1.5 | 15.0 | 12.5 | 8.5 | 50 |
| EV214-22100032 | EV214-22100040 | M16 × 1.5 | 19.0 | 13.0 | 8.5 | 50 |
| EV214-22100033 | EV214-22100041 | M20 × 1.5 | 25.0 | 13.0 | 9.0 | 50 |
| EV214-22100034 | EV214-22100042 | M25 × 1.5 | 30.0 | 15.5 | 10.5 | 50 |
| EV214-22100035 | EV214-22100043 | M32 × 1.5 | 38.0 | 16.0 | 10.5 | 25 |
| EV214-22100036 | EV214-22100044 | M40 × 1.5 | 46.0 | 16.0 | 11.5 | 25 |
| EV214-22100037 | EV214-22100045 | M50 × 1.5 | 56.0 | 18.0 | 13.5 | 25 |
| EV214-22100038 | EV214-22100046 | M63 × 1.5 | 68.0 | 19.0 | 14.0 | 25 |
黄铜PG螺纹系列
| 零件号 | 尺寸（mm） | 标准包装数量 | |||
| d | D | H | h | ||
| EV214-22100021 | PG 7 | 14.0 | 8.0 | 5.5 | 50 |
| EV214-22100022 | PG 9 | 17.0 | 9.0 | 6.0 | 50 |
| EV214-22100023 | PG 11 | 20.0 | 9.0 | 6.0 | 50 |
| EV214-22100024 | PG 13.5 | 22.0 | 9.5 | 6.5 | 50 |
| EV214-22100025 | PG 16 | 24.0 | 9.5 | 6.5 | 50 |
| EV214-22100026 | PG 21 | 30.0 | 11.0 | 7.0 | 50 |
| EV214-22100027 | PG 29 | 39.0 | 12.0 | 8.0 | 25 |
| EV214-22100028 | PG 36 | 50.0 | 15.0 | 9.0 | 25 |
| EV214-22100029 | PG 42 | 57.0 | 16.0 | 10.0 | 25 |
| EV214-22100030 | PG 48 | 64.0 | 16.0 | 10.0 | 25 |
黄铜公制螺纹系列
| 零件号 | 尺寸（mm） | 标准包装数量 | |||
| d | D | H | h | ||
| EV214-22100047 | M12 × 1.5 | 14.0 | 8.0 | 5.0 | 50 |
| EV214-22100048 | M16 × 1.5 | 18.0 | 9.0 | 6.0 | 50 |
| EV214-22100049 | M20 × 1.5 | 22.0 | 9.5 | 6.5 | 50 |
| EV214-22100050 | M25 × 1.5 | 28.0 | 11.0 | 7.0 | 50 |
| EV214-22100051 | M32 × 1.5 | 35.0 | 12.0 | 8.0 | 25 |
| EV214-22100052 | M40 × 1.5 | 44.0 | 15.0 | 9.0 | 25 |
| EV214-22100053 | M50 × 1.5 | 54.0 | 16.0 | 10.0 | 25 |
| EV214-22100054 | M63 × 1.5 | 70.0 | 16.0 | 10.0 | 25 |
