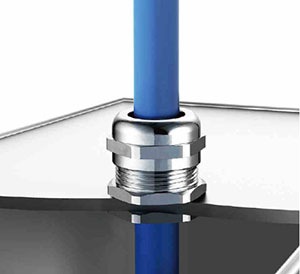

> 金属电缆固定头 EV214-2803

义文机电金属电缆固定头 EV214-2803参数信息

300

材料	镀镍黄铜
	夹紧卡爪：尼龙（PA），UL94
	防水圈：丁腈橡胶（NBR），耐候橡胶（EPDM)
	O型圈：丁腈橡胶（NBR）
防护等级	IP68
工作温度	-40℃至100℃或瞬间可耐热至120℃

PG系列—标准配合螺纹

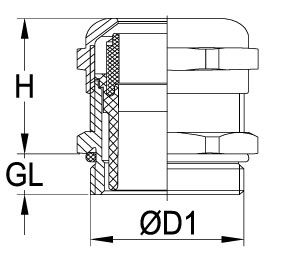

零件号	ΦD1	线缆直径	H	GL	六角对边
EV214-28030001	PG 7	3-6.5	19	5	14
EV214-28030002	PG 7	2-5	19	5	14
EV214-28030003	PG 9	4-8	21	6	17
EV214-28030004	PG 9	2-6	21	6	17
EV214-28030005	PG 11	5-10	22	6	20
EV214-28030006	PG 11	3-7	22	6	20
EV214-28030007	PG 13.5	6-12	24	6.5	22
EV214-28030008	PG 13.5	5-9	24	6.5	22
EV214-28030009	PG 16	10-14	23	6.5	24
EV214-28030010	PG 16	7-12	23	6.5	24
EV214-28030011	PG 21	13-18	24	7	30
EV214-28030012	PG 21	9-16	24	7	30
EV214-28030013	PG 29	18-25	29	8	40
EV214-28030014	PG 29	13-20	29	8	40
EV214-28030015	PG 36	22-32	35	8	50
EV214-28030016	PG 36	20-26	35	8	50
EV214-28030017	PG 42	32-38	37	9	57
EV214-28030018	PG 42	25-31	37	9	57
EV214-28030019	PG 48	37-44	38	10	64
EV214-28030020	PG 48	29-35	38	10	64

公制系列—标准配合螺纹

零件号	ΦD1	线缆直径	H	GL	六角对边
EV214-28030041	M 12 x 1.5	3-6.5	19	6.5	14
EV214-28030042	M 12 x 1.5	2-5	19	6.5	14
EV214-28030043	M 16 x 1.5	4-8	21	6	19
EV214-28030044	M 16 x 1.5	2-6	21	6	19
EV214-28030045	M 16 x 1.5	5-10	22	6	20
EV214-28030046	M 20 x 1.5	6-12	23	6	22
EV214-28030047	M 20 x 1.5	5-9	23	6	22
EV214-28030048	M 20 x 1.5	10-14	24	6	24
EV214-28030049	M 25 x 1.5	13-18	26	7	30
EV214-28030050	M 25 x 1.5	9-16	26	7	30
EV214-28030051	M 32 x 1.5	18-25	31	8	40
EV214-28030052	M 32 x 1.5	13-20	31	8	40
EV214-28030053	M 40 x 1.5	22-32	37	8	50
EV214-28030054	M 40 x 1.5	20-26	37	8	50
EV214-28030055	M 50 x 1.5	32-38	37	9	57
EV214-28030056	M 50 x 1.5	25-31	37	9	57
EV214-28030057	M 63 x 1.5	37-44	38	10	68
EV214-28030058	M 63 x 1.5	29-35	38	10	68

NPT系列

零件号	ΦD1	线缆直径	H	GL	六角对边
EV214-28030077	3/8 NPT	4-8	21	15	19
EV214-28030078	3/8 NPT	2-6	21	15	19
EV214-28030079	1/2 NPT	6-12	24	13	24
EV214-28030080	1/2 NPT	5-9	24	13	24
EV214-28030081	3/4 NPT	13-18	25	13	30
EV214-28030082	3/4 NPT	9-16	25	13	30
EV214-28030083	1 NPT	18-25	29	15	40
EV214-28030084	1 NPT	13-20	29	15	40
EV214-28030085	1/4 NPT	18-25	31	17	44
EV214-28030086	1/4 NPT	13-20	31	17	44
EV214-28030087	1/2 NPT	22-32	37	20	55
EV214-28030088	1/2 NPT	20-26	37	20	50
EV214-28030089	1/2 NPT/E	10-14	23	13	24
EV214-28030090	1/2 NPT/E	7-12	23	13	24

PG系列—长配合螺纹

零件号	ΦD1	线缆直径	H	GL	六角对边
EV214-28030021	PG 7	3-6.5	19	10	14
EV214-28030022	PG 7	2-5	19	10	14
EV214-28030023	PG 9	4-8	20	10	17
EV214-28030024	PG 9	2-6	20	10	17
EV214-28030025	PG 11	5-10	21	10	20
EV214-28030026	PG 11	3-7	21	10	20
EV214-28030027	PG 13.5	6-12	22	10	22
EV214-28030028	PG 13.5	5-9	22	10	22
EV214-28030029	PG 16	10-14	23	10	24
EV214-28030030	PG 16	7-12	23	10	24
EV214-28030031	PG 21	13-18	25	12	30
EV214-28030032	PG 21	9-16	25	12	30
EV214-28030033	PG 29	18-25	29	12	40
EV214-28030034	PG 29	13-20	29	12	40
EV214-28030035	PG 36	22-32	35	12	50
EV214-28030036	PG 36	20-26	35	15	50
EV214-28030037	PG 42	32-38	37	15	57
EV214-28030038	PG 42	25-31	37	15	57
EV214-28030039	PG 48	37-44	38	15	64
EV214-28030040	PG 48	29-35	38	15	64

公制系列—长配合螺纹

零件号	ΦD1	线缆直径	H	GL	六角对边
EV214-28030059	M 12 x 1.5	3-6.5	19	10	14
EV214-28030060	M 12 x 1.5	2-5	19	10	14
EV214-28030061	M 16 x 1.5	4-8	21	10	19
EV214-28030062	M 16 x 1.5	2-6	21	10	19
EV214-28030063	M 16 x 1.5	5-10	22	10	20
EV214-28030064	M 20 x 1.5	6-12	23	10	22
EV214-28030065	M 20 x 1.5	5-9	23	10	22
EV214-28030066	M 20 x 1.5	10-14	24	10	24
EV214-28030067	M 25 x 1.5	13-18	26	12	30
EV214-28030068	M 25 x 1.5	9-16	26	12	30
EV214-28030069	M 32 x 1.5	18-25	31	12	40
EV214-28030070	M 32 x 1.5	13-20	31	12	40
EV214-28030071	M 40 x 1.5	22-32	37	15	50
EV214-28030072	M 40 x 1.5	20-26	37	15	50
EV214-28030073	M 50 x 1.5	32-38	37	15	57
EV214-28030074	M 50 x 1.5	25-31	37	15	57
EV214-28030075	M 63 x 1.5	37-44	38	15	68
EV214-28030076	M 63 x 1.5	29-35	38	15	68
