| 注意 | 另有同规格不锈钢材质的调整脚可供选购 |
| 另有同规格带螺母样式可供选购 | |
| 另有不带橡胶衬垫规格可供选购 | |
| 详情请联系我司营业人员 | |

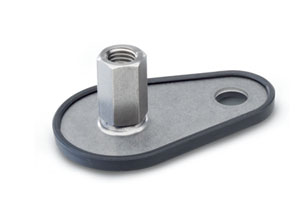

| 装配 | 带内螺纹，外六角立面 |
材料及表面处理
| 零件名 | 材料 | 表面处理 |
| 底盘 | 钢 | 镀锌 |
| 螺杆 | 钢 | 镀锌，蓝钝处理 |
| 橡胶衬垫 | TPE | 黑色 |

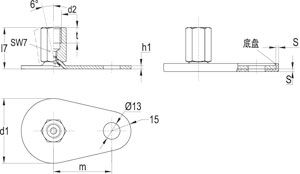

| 零件号 | l7 | d2 | 承重[N] | d1 | t | SW7 | s | h1 | m |
| EV175-03100001 | 25 | M8 | 8000 | 50 | 8 | 14 | 2 | 2.5 | 45 |
| EV175-03100002 | 28 | M10 | 14000 | 10 | 14 | 2 | |||
| EV175-03100003 | 32 | M12 | 12 | 17 | 2 | ||||
| EV175-03100004 | 37 | M16 | 16 | 22 | 2 | ||||
| EV175-03100005 | 25 | M8 | 8000 | 60 | 8 | 14 | 2 | 2.5 | 50 |
| EV175-03100006 | 28 | M10 | 14000 | 10 | 14 | 2 | |||
| EV175-03100007 | 32 | M12 | 16000 | 12 | 17 | 2 | |||
| EV175-03100008 | 37 | M16 | 16 | 22 | 2 | ||||
| EV175-03100009 | 26 | M8 | 8000 | 80 | 8 | 14 | 2 | 3 | 70 |
| EV175-03100010 | 29 | M10 | 14000 | 10 | 14 | 2 | |||
| EV175-03100011 | 32 | M12 | 20000 | 12 | 17 | 2 | |||
| EV175-03100012 | 38 | M16 | 16 | 22 | 2 | ||||
| EV175-03100013 | 45 | M20 | 20 | 27 | 5 |
